Technical Overview
Dimensions (HxWxD)
197x826x546 mm
Cooktop type
Induction with integrated ventilation
Total number of positions that can be used at the same time
4
Type of frame
Design frame
Operating Mode
Exhaust / Recirculation (Accessory available separately)
Maximum output air extraction
551 m³/h
Sound power at max. speed (2010/30/EC)
70 dB
Home Connect
No
Key Features
Specifications
Main colour of product
Black
Type of appliance width
80 cm
Total number of positions that can be used at the same time
4
Dimensions of the heating elements (not applicable for gas)
4 x (20,0 x 24,0 cm)
Power of heating elements
4 x 2.2 (3.7) kW
Type of frame
Design frame
Number of radiant plates
0
Number of induction zones
4
Heating with booster
All
Type of control setting and signalling devices
Rotary control, Knob
Operating Mode
Exhaust / Recirculation (Accessory available separately)
Maximum output air extraction
551 m³/h
Boost position air extraction
684 m³/h
Maximum output recirculating air
557 m³/h
Boost position output recirculating
618.0 m³/h
Sound power at max. speed (2010/30/EC)
70 dB
Sound power boost (2010/30/EC)
75 dB
Noise level
70 dB(A) re 1 pW
Energy consumption of cooktop
185.0 Wh/kg
Included accessories
1 x adjustment strip 750 - 780 mm

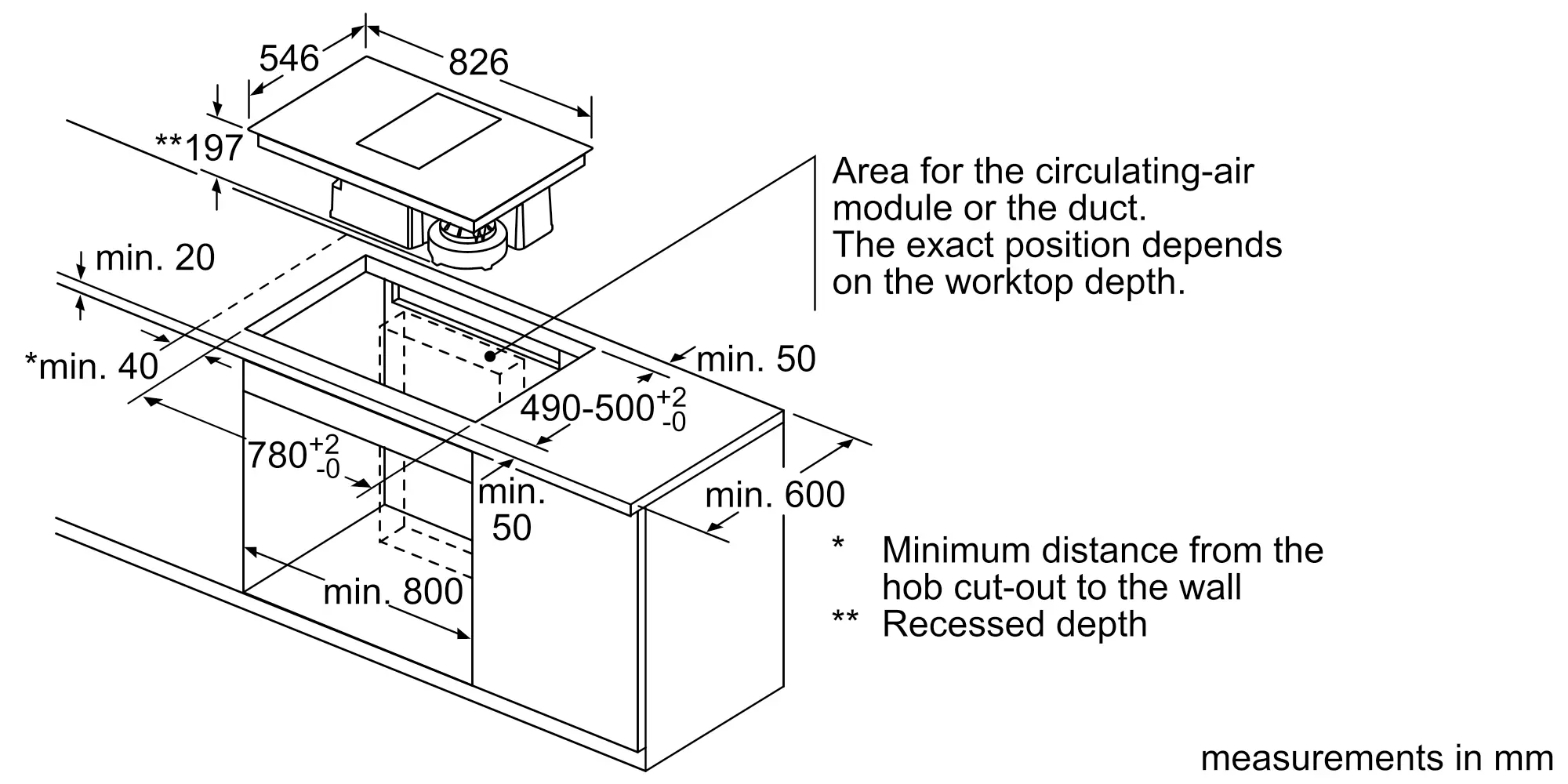

Dimensions (HxWxD)
197x826x546 mm
Dimensions of the packed product (HxWxD)
330x760x940 mm
Minimum height for installation
490 mm
Maximum height for installation
490 mm
Minimum width for installation
780 mm
Maximum width for installation
780 mm
Depth for installation
197 mm
Appliance height above the worktop
300.0 mm
1 / 0
Connection Rating
7400 W
Voltage
220-240 V
Length electrical supply cord
110 cm
Plug type
No plug (electrical connection by licensed electrician)
Included user manuals
[DA, DE, EN, FI, FR, NL, NO, SV]
User interface
Twistpad fire
hotplate control settings
17 power levels for each cooking zone
Cooking zone flexibility
2 Flex Induction cooking zones
Power Boost
Yes
Glass protect
No
activeLight Plus
No
PerfectFry
Yes
Cooking sensor
No
Cooking sensor ready (sensor sold separately)
No
PowerMove
Yes
Setting transfer function
Yes
Quick Start
Yes
Keep warm function
Yes
Timer
Yes
Timer
Switch-off timer (on appliance), Count-down timer (on appliance), Count-up timer (on appliance)
Efficient Drive Brushless motor
Yes
Boost mode
Yes
Delay Shut off modes
Yes
Clean filter reminder
Yes
Number of power settings
9-stage + intensive
Home Connect
No
Safety device
Child lock, Safety shut-off, Wipe protection, Pot detection
