Technical Overview
Installation type
Built-in
Type of appliance width
52 cm
Cooktop-based rangehood control
No
Sound pressure recirculated air level 2
57 dB(A) re 1 pW
Automatic Air Sensor
No
Operating Mode
Exhaust / Recirculation (Accessory available separately)
Maximum output air extraction
575 m³/h
Boost position air extraction
650 m³/h
Key Features
Specifications
Type of appliance width
52 cm
Colour of the body
Stainless steel
Installation type
Built-in
Operating Mode
Exhaust / Recirculation (Accessory available separately)
Total power of the motors
275 W
Type of control setting and signalling devices
Button
Number of power settings
3-stages + intensive setting
Maximum output air extraction
575 m³/h
Boost position air extraction
650 m³/h
Sound power at max. speed (2010/30/EC)
67 dB
Sound power boost (2010/30/EC)
70 dB
Maximum output recirculating air
541 m³/h
Boost position output recirculating
606 m³/h
Sound power at max. speed (recirculation)
71 dB
Sound power boost (recirculation)
74 dB
Grease filter material
Washable aluminium
Energy efficiency rating
C
Total annual energy consumption
107.8 kWh/year
Included user manuals
[EN]

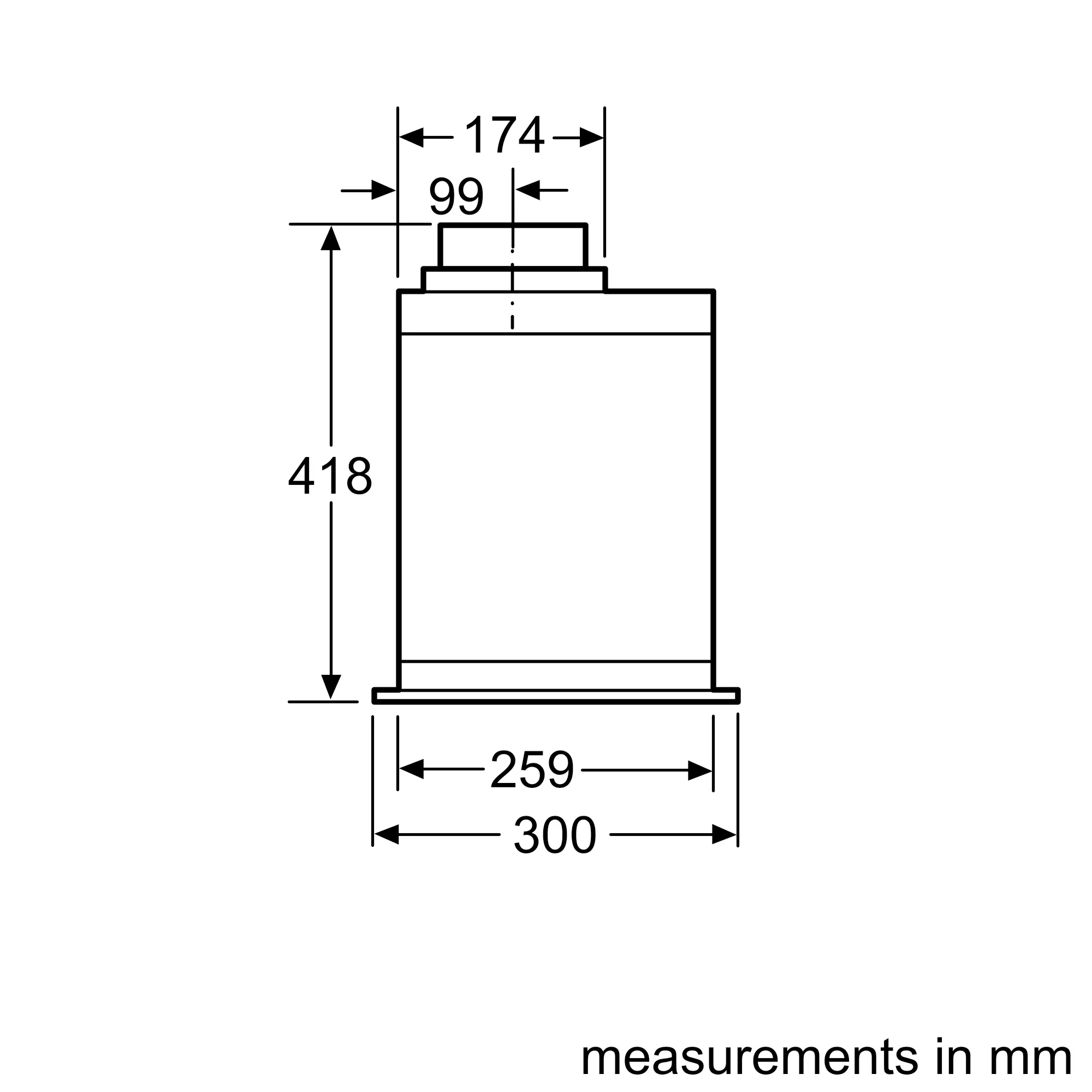

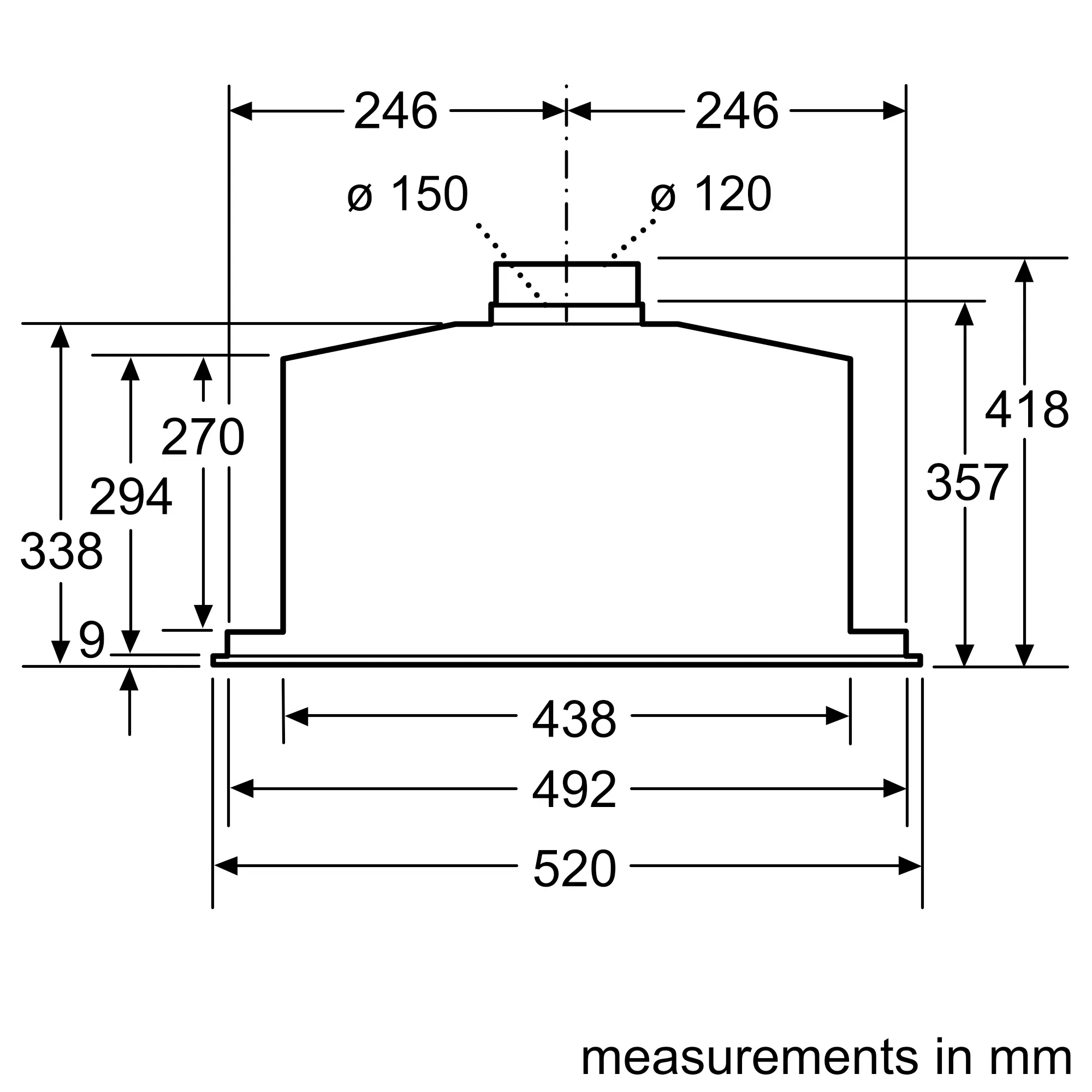

Height of the appliance
418 mm
Width of the appliance
520 mm
Depth of the product
300 mm
Dimensions of the packed product (HxWxD)
370x600x465 mm
Minimum distance above an electric cooktop (EU)
500 mm
Minimum distance above a gas cooktop
650 mm
Diameter of air outlet
120 / 150 mm
No-return airflow flap
Yes
Length electrical supply cord
150 cm
Net weight
9.0 kg
Handle bar
Not applicable
Appliance height exhaust air max
418 mm
Appliance height exhaust air min
418 mm
Appliance height recirculating max
418 mm
Appliance height recirculating min
418 mm

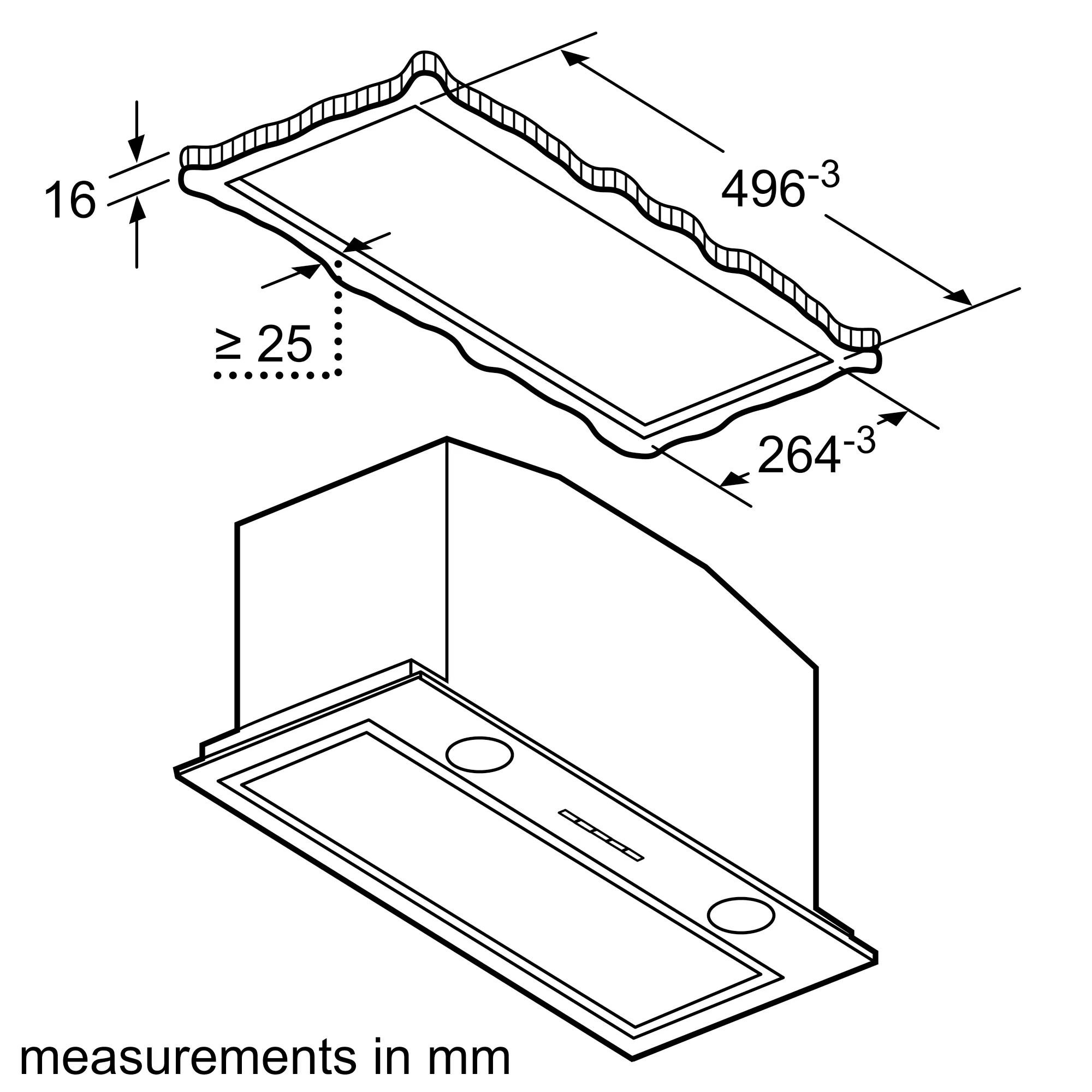

Maximum width for installation
496 mm
Minimum width for installation
496 mm
Depth for installation
264 mm
1 / 0
Automatic Air Sensor
No
Efficient Drive Brushless motor
No
Extremely silent appliances
No
Clean filter reminder
No
Boost mode
Yes
Delay Shut off modes
No
Remote control
No
Type of lamps used
LED
Number of lights
2
Total power of the lamps
2 W
Total luminance
244 lux
Color temperature
Cold white (4.000 K)
Illumination type softlight
No
Light colour customisable by Home Connect
No
Ambient light
No
Home Connect
No
Cooktop-based rangehood control
No
Smart Hood Automatic
No
