Technical Overview
Cooktop type
Gas cooktop
Total number of positions that can be used at the same time
5
FlameSelect
Yes
Type of frame
Frameless
Basic surface material
Stainless steel
Material of pan supports
Cast iron with rubber feet
Gas type preset
Nat gas H/E/(L) 20 (25) mbar
Nozzle set included for alternative gas type
Liquid gas G30,31 28-30/37mbar
Key Features
Specifications
Basic surface material
Stainless steel
Main colour of product
Stainless steel
Type of frame
Frameless
Flushmount
No
Material of pan supports
Cast iron with rubber feet
Knob illumination
No
Knob Material
Plastic
Flat burner
No
Gas type preset
Nat gas H/E/(L) 20 (25) mbar
Nozzle set included for alternative gas type
Liquid gas G30,31 28-30/37mbar
Type of appliance width
75 cm
Dimensions (HxWxD)
53x750x520 mm
Dimensions of the packed product (HxWxD)
145x793x597 mm

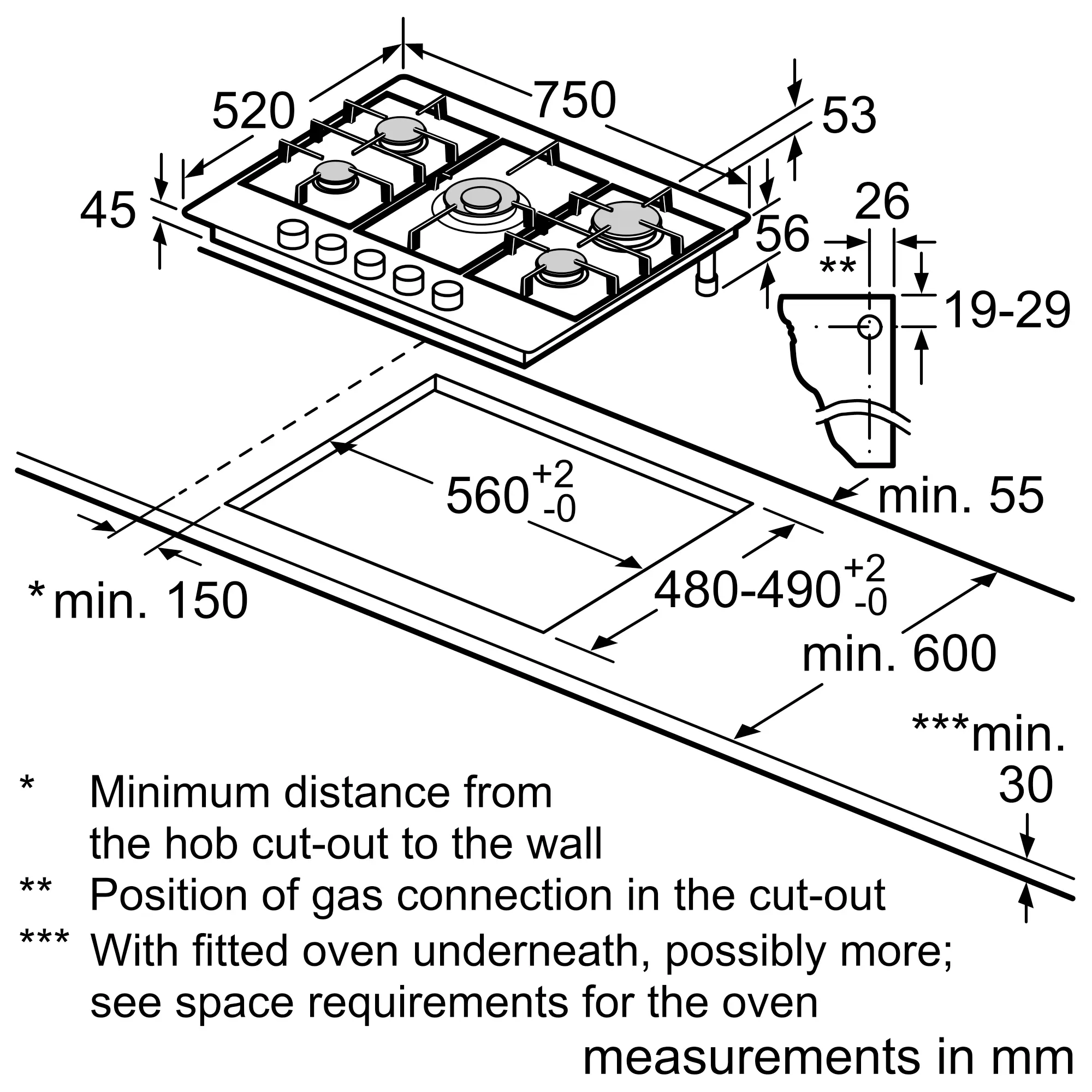

Required niche size for installation (HxWxD)
45 x 560-562 x 480-492 mm
Minimum worktop thickness (without spacer / with spacer, order seperately)
30 mm / 12 mm
Length electrical supply cord
100 cm
Plug type
Standard 10 Amp plug
Gas connection rating
12500 W
Total number of positions that can be used at the same time
5
Dual wok burner
Yes
Power of heating elements
1 x 1.0, 1 x 3.0, 1 x 5.0, 2 x 1.75 kW
Type Cooking zone
Standard burner, Standard burner, Economy burner, High-speed burner, WOK burner
FlameSelect
Yes
Display
Yes
Type of display
Electronic power level display
Dishwasher suitable pan support
No
Removable control dials for easy cleaning
No
Location of control panel
Front
Type of control setting and signalling devices
Knob
Cooktop ignition
Knob ignition
One piece burner
No
Home Connect
No
Cooktop-based rangehood control
No
Smart Hood Automatic
No
Updateable appliance (available with connected Home Connect account): keep appliance always up to date with latest status of software.
No
Safety device
Flame failure safety device
Main on/off switch
No
Included accessories
1 x cross support for espresso, 1 x wok attachment ring
