N 90 integrated rangehood 70 cm BlackD76NPC1S0A
D76NPC1S0A
1 / 0
N 90 integrated rangehood 70 cm BlackD76NPC1S0A
D76NPC1S0A
$1,899.00
List price
Find a local Dealer
Find a local dealer in your vicinity
N 90 integrated rangehood 70 cm BlackD76NPC1S0A
D76NPC1S0A
$1,899.00
List price
Find a local Dealer
Find a local dealer in your vicinity
Technical Overview
Installation type
Built-in
Type of appliance width
70 cm
Cooktop-based rangehood control
No
Noise level
61 dB(A) re 1 pW
Automatic Air Sensor
No
Operating Mode
Exhaust / Recirculation (Accessory available separately)
Maximum output air extraction
590 m³/h
Boost position air extraction
800 m³/h
Key Features
Specifications
Type of appliance width
70 cm
Colour of the body
Black
Installation type
Built-in
Operating Mode
Exhaust / Recirculation (Accessory available separately)
Total power of the motors
170 W
Type of control setting and signalling devices
Button
Number of power settings
3-stages + intensive setting
Maximum output air extraction
590 m³/h
Boost position air extraction
800 m³/h
Sound power at max. speed (2010/30/EC)
61 dB
Sound power boost (2010/30/EC)
69 dB
Maximum output recirculating air
560 m³/h
Boost position output recirculating
760 m³/h
Sound power at max. speed (recirculation)
68 dB
Sound power boost (recirculation)
74 dB
Grease filter material
Washable aluminium
Energy efficiency rating
A++
Total annual energy consumption
31.0 kWh/year
Included user manuals
[EN]
Voltage
220-240 V

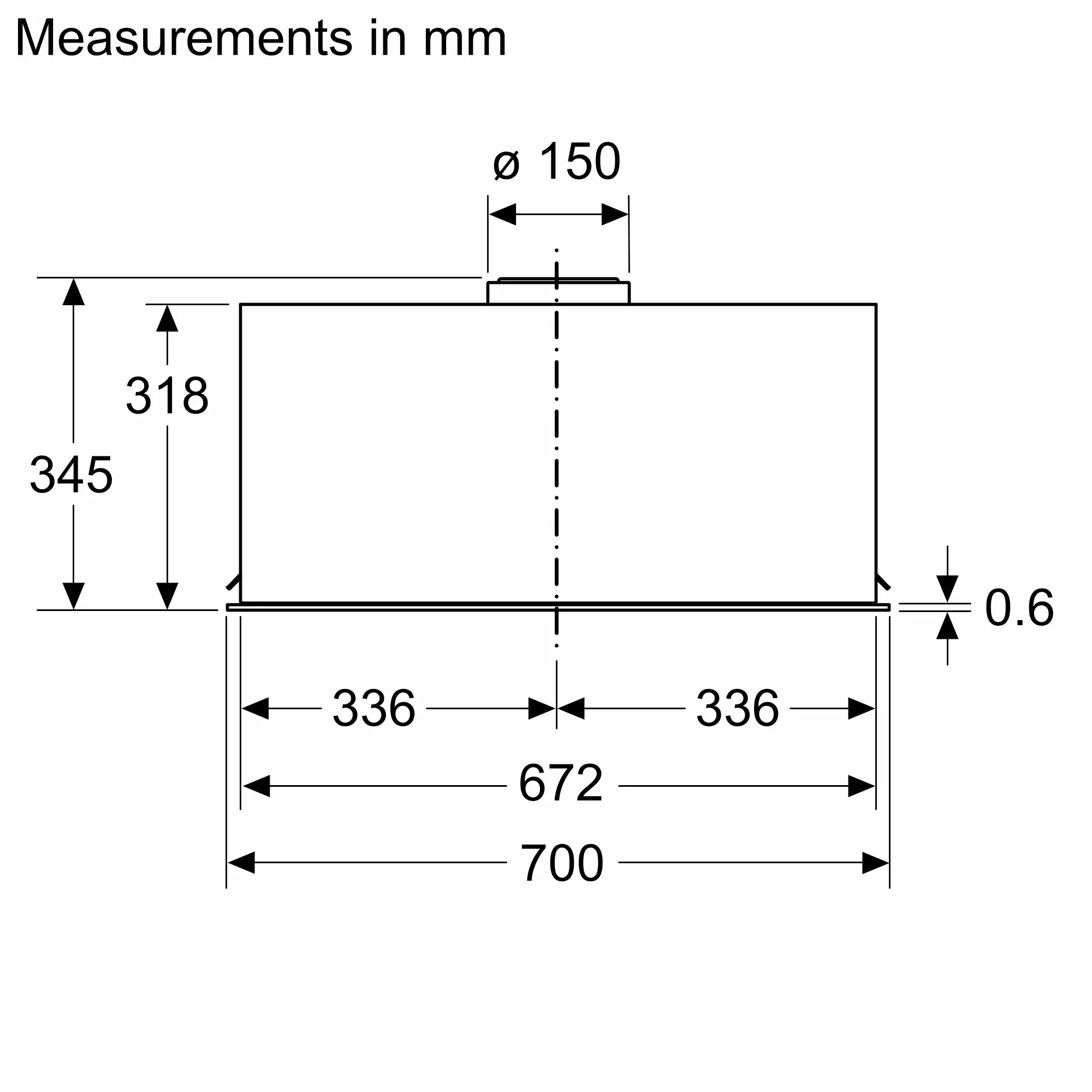

Height of the appliance
345 mm
Width of the appliance
700 mm
Depth of the product
282 mm
Dimensions of the packed product (HxWxD)
385x480x787 mm
Height of the chimney
GENERAL.N_A mm
Minimum distance above an electric cooktop (EU)
600 mm
Minimum distance above a gas cooktop
650 mm
Diameter of air outlet
120 / 150 mm
No-return airflow flap
Yes
Length electrical supply cord
150 cm
Net weight
11.1 kg
Handle bar
Not applicable
Appliance height exhaust air max
345 mm
Appliance height exhaust air min
345 mm
Appliance height recirculating max
345 mm
Appliance height recirculating min
345 mm

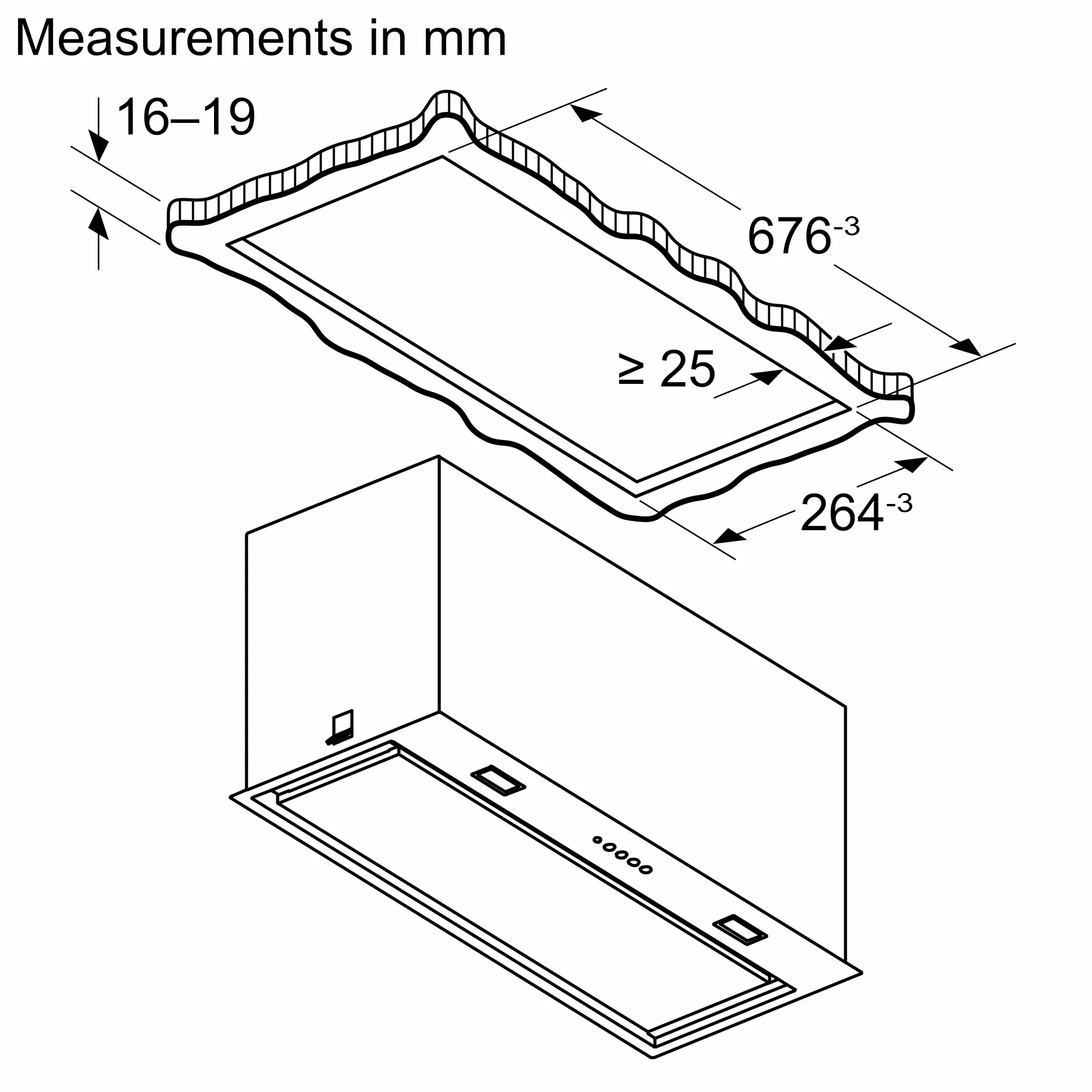

Maximum width for installation
676 mm
Minimum width for installation
676 mm
Depth for installation
264 mm
1 / 0
Automatic Air Sensor
No
Efficient Drive Brushless motor
Yes
Extremely silent appliances
No
Clean filter reminder
Yes
Boost mode
Yes
Delay Shut off modes
Yes
Remote control
No
Type of lamps used
LED
Number of lights
2
Total power of the lamps
2 W
Total luminance
300 lux
Color temperature
Neutral (3.500 K)
Illumination type softlight
Yes
Light colour customisable by Home Connect
No
Ambient light
No
Home Connect
No
Cooktop-based rangehood control
No
Smart Hood Automatic
No
